10 Essential ECG STEMI Locations Every Cardiologist Must Know

Introduction

Understanding the landscape of ECG analysis is crucial for cardiologists, particularly in identifying critical conditions like ST-elevation myocardial infarction (STEMI). The MaxYield™ platform from Neural Cloud Solutions offers advanced technology that enhances the clarity and accuracy of ECG readings. This improvement can lead to better patient outcomes, addressing a significant challenge in the field.

Clinicians often face difficulties interpreting various ECG patterns associated with different types of STEMI. The MaxYield™ platform provides features that streamline this process, allowing for more effective diagnosis. By leveraging its capabilities, healthcare professionals can interpret ECG data with greater precision, ensuring timely and accurate assessments.

The advantages of using the MaxYield™ platform are clear. It not only improves the accuracy of ECG readings but also supports healthcare professionals in making informed decisions. This ultimately enhances patient care and outcomes, making it an essential tool in modern cardiology.

In this article, we will explore the essential ECG STEMI locations every cardiologist must know, delving into the nuances of each condition and the technological innovations that support better diagnostic practices.

Neural Cloud Solutions: MaxYield™ for Enhanced ECG Clarity

ECG analysis has long faced challenges, particularly in terms of clarity and accuracy. Neural Cloud Solutions addresses these issues with its MaxYield™ platform, which automates the analysis of ECG signals through advanced noise filtering and wave recognition. This innovative technology employs sophisticated AI algorithms to process ECG data swiftly, enabling healthcare professionals to make informed decisions based on precise cardiac insights.

MaxYield™ boasts impressive capabilities, analyzing over 200,000 heartbeats in under five minutes. It provides beat-by-beat analysis that isolates and labels key features, including P-waves, QRS complexes, and T-wave intervals. By transforming noisy recordings into detailed insights, this platform is essential for identifying critical cardiac events, making it an invaluable tool for cardiologists and healthcare technicians.

Moreover, MaxYield™ is device-agnostic, seamlessly integrating with various ECG devices, such as 1-lead and 3-lead systems. This compatibility enhances workflow efficiency and productivity across the healthcare spectrum. The platform embodies Gold Standard Methodologies in noise filtering, ensuring the highest quality of ECG analysis.

In summary, the MaxYield™ platform not only improves the accuracy of ECG analysis but also empowers healthcare professionals with the tools they need to deliver better patient care.

Anterior STEMI: Key ECG Patterns and Localization

Anterior myocardial infarction is marked by ST-segment elevation in leads V1 to V4, indicating a potential blockage of the left anterior descending artery (LAD). Clinicians should also be vigilant for reciprocal ST-segment depression in the inferior leads (II, III, aVF), which serves as an additional diagnostic indicator.

Recognizing these ECG patterns is crucial for determining ECG STEMI locations, as anterior ST elevation myocardial infarction is associated with a higher risk of complications and mortality. Recent studies highlight that early detection of these changes can lead to better patient outcomes, underscoring the need for cardiologists to be proficient in interpreting these vital ECG alterations.

Prominent cardiologists emphasize that maintaining a high index of suspicion for anterior ST elevation myocardial infarction is essential for optimizing treatment and improving survival rates.

Inferior STEMI: Diagnostic Criteria and Common Pitfalls

Inferior myocardial infarction is primarily identified by ST-segment elevation in channels II, III, and aVF, along with reciprocal ST-segment depression in channels I and aVL. However, diagnosing this condition can be challenging due to the risk of misinterpretation, especially when patterns overlap with conditions like right ventricular infarction. For example, studies show that 1.4% of individuals diagnosed with STEMI were misdiagnosed. This highlights the importance for clinicians to remain vigilant in evaluating both clinical context and ECG findings. Misdiagnosis can lead to treatment delays, which can be particularly harmful; patients experiencing longer delays often face worse outcomes.

Understanding the implications of ST elevation in these electrodes is crucial for detecting ECG STEMI locations to ensure prompt reperfusion therapy, which significantly enhances survival rates. The MaxYield™ platform from Neural Cloud Solutions addresses these challenges by automating ECG labeling and providing advanced signal processing capabilities. This not only helps reduce the risk of misdiagnosis but also lowers operational costs.

Features of MaxYield™:

Advantages for Healthcare Professionals:

Enhanced training in ECG interpretation and awareness of atypical presentations can further minimize the risk of misdiagnosis, ultimately leading to better patient outcomes. By leveraging the MaxYield™ platform, healthcare professionals can improve their diagnostic accuracy and ensure timely treatment for patients.

Posterior STEMI: Recognizing ECG Characteristics

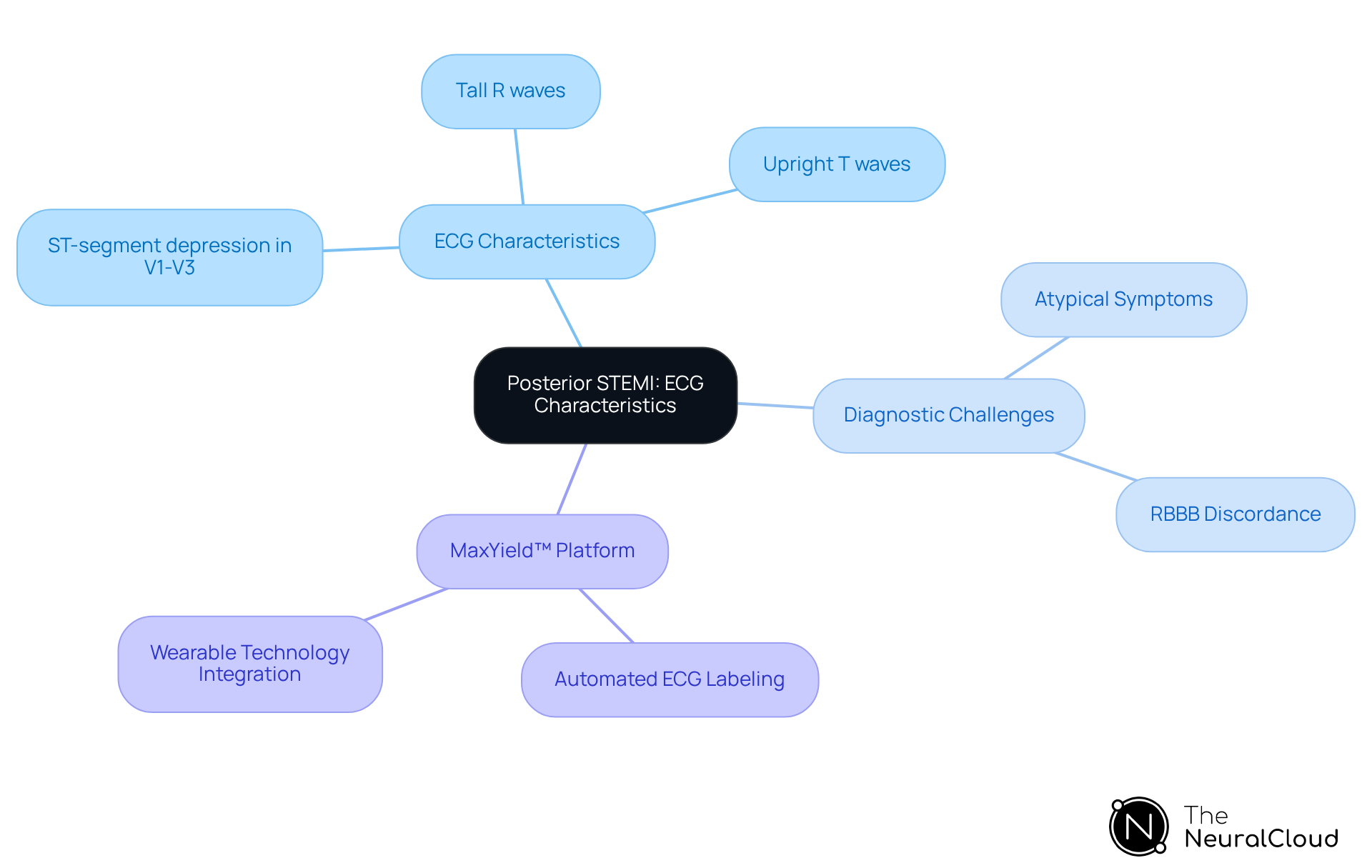

Posterior myocardial infarction is identified by ST-segment depression in leads V1 to V3, along with tall, broad R waves and upright T waves in these areas. The diagnosis is confirmed through ST-segment elevation in the posterior leads (V7 to V9). Clinicians should be aware that posterior myocardial infarction can present with atypical symptoms, complicating its identification, especially in patients showing signs of inferior myocardial infarction. Early recognition is vital, as timely intervention can significantly lower the risk of adverse outcomes.

Case studies illustrate the challenges in diagnosing posterior ST elevation myocardial infarction, particularly in the presence of right bundle branch block (RBBB), where notable discordance in ST-segment changes may indicate underlying myocardial infarction. The importance of prompt management is underscored by findings that longer door-to-balloon times correlate with higher mortality rates, emphasizing the need for swift evaluation and action in suspected cases of posterior myocardial infarction.

Neural Cloud Solutions' MaxYield™ platform addresses these challenges by automating ECG labeling and data extraction. This feature allows clinicians to focus their time and energy on tasks that require human expertise. By integrating wearable technology with MaxYield™, healthcare providers can enhance the accuracy and reliability of ECG analysis while also reducing operational costs associated with manual data handling.

The benefits of the MaxYield™ platform are clear: it streamlines the ECG analysis process, improves diagnostic accuracy, and ultimately supports better patient outcomes. As Charle Viljoen states, 'Accurate diagnosis of heart attack permits the prompt initiation of suitable treatment,' highlighting the critical role of efficient management in healthcare.

Lateral STEMI: ECG Patterns and Diagnostic Importance

Lateral myocardial infarction is marked by ST-segment elevation in leads I, aVL, V5, and V6, often accompanied by reciprocal ST-segment depression in the inferior leads (III and aVF). This specific ECG pattern typically indicates occlusion of the left circumflex artery, which is involved in about 15% to 20% of all myocardial infarctions. Clinicians must be vigilant in recognizing these changes, as lateral myocardial infarction can easily be mistaken for other cardiac conditions, leading to misdiagnosis. Accurate identification is crucial for timely intervention, as delays in treatment can lead to significant morbidity and adverse outcomes.

Recent studies highlight the importance of AI-driven ECG analysis in improving the diagnostic accuracy of lateral myocardial infarction. For example, the Queen of Hearts AI-ECG platform has shown superior sensitivity (92%) and specificity (81%) compared to traditional methods. This advancement has significantly reduced false-positive catheter lab activations from 41.8% to 7.9%. Such improvements underscore the vital role of technology in enhancing clinical decision-making and treatment timelines.

Looking ahead to 2026, the integration of AI in detecting lateral heart attacks is expected to further refine diagnostic procedures. This will enable healthcare professionals to swiftly identify individuals in need of urgent care. As emergency medicine evolves, the emphasis on precise ECG interpretation remains essential, particularly for conditions like lateral myocardial infarction that may present with subtler symptoms. The ongoing development of AI tools aims to tackle these challenges, ultimately enhancing patient outcomes and resource management in emergency settings.

Right Ventricular STEMI: ECG Findings and Management

Right ventricular myocardial infarction (RVMI) is often associated with inferior myocardial infarction and can be identified by ST-segment elevation in lead V4R. Clinicians should also monitor for ST-segment elevation in leads II, III, and aVF, as well as reciprocal ST-segment depression in the lateral leads. Recognizing RVMI is essential, as it can significantly impact hemodynamics and treatment strategies.

The MaxYield™ platform from Neural Cloud Solutions addresses the challenges in ECG analysis by providing advanced noise filtering and distinct wave recognition. This technology enhances the accuracy of ECG readings, allowing healthcare professionals to isolate critical data quickly, even in recordings affected by high levels of noise and artifact. As a result, RVMI can be identified promptly, improving patient outcomes.

The benefits of using the MaxYield™ platform are substantial. It not only streamlines the ECG analysis process but also supports healthcare professionals in making informed decisions. Effective management of RVMI may require volume resuscitation and careful monitoring to prevent severe complications, and the MaxYield™ platform equips clinicians with the tools necessary to navigate these challenges effectively.

STEMI Diagnosis with Baseline ECG Abnormalities

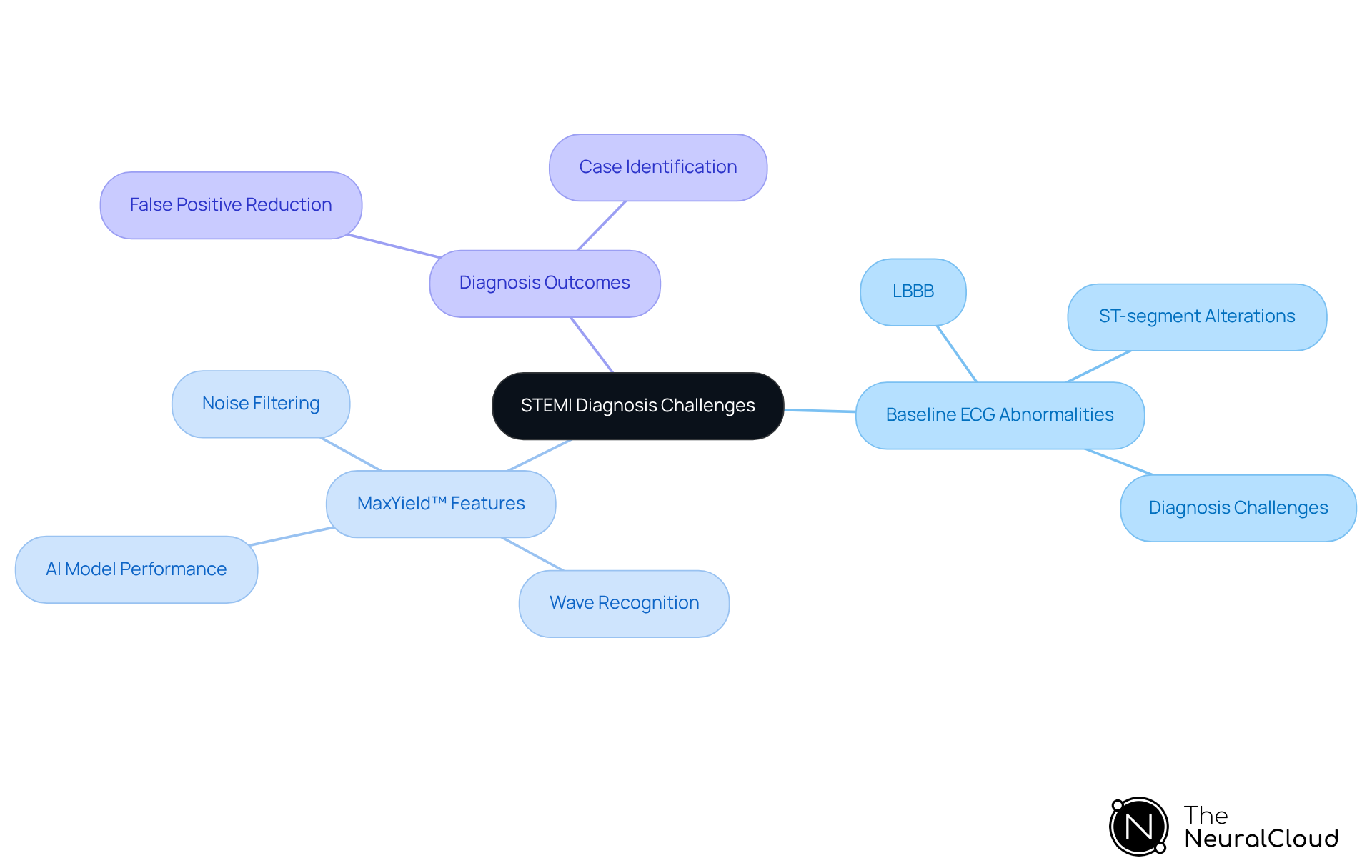

Baseline ECG irregularities, such as left bundle branch block (LBBB) and pre-existing ST-segment alterations, pose significant challenges in diagnosing ST-Elevation Myocardial Infarction (STEMI). Clinicians face the critical task of distinguishing between new changes indicative of myocardial infarction and chronic alterations that could mislead diagnosis. Recent studies indicate that LBBB can obscure the detection of myocardial infarction with ST elevation, with approximately 30% of left anterior descending (LAD) occlusions showing no ST elevation. This situation necessitates advanced interpretative strategies to ensure accurate diagnosis.

The MaxYield™ platform offers features that enhance ECG analysis, including gold standard noise filtering and advanced wave recognition capabilities. These tools improve the clarity of ECG readings, enabling healthcare professionals to identify critical changes even amidst baseline conditions. The AI model within MaxYield™ has demonstrated superior performance compared to standard triage techniques, accurately identifying 553 confirmed heart attack cases, while conventional methods detected only 427. This advancement significantly reduces false positives, lowering the rate from nearly 42% to around 8%.

By automating repetitive tasks and streamlining workflows, MaxYield™ supports clinicians in managing complex ECG interpretations more efficiently. Understanding the relationship between chronic ECG changes and acute myocardial events is vital for timely and effective patient management, ultimately enhancing outcomes in emergency care. As Bryn Mumma emphasizes, 'STEMI is a life-threatening emergency where every minute matters,' highlighting the urgency of accurate diagnosis.

STEMI vs. Occlusion MI: Key Diagnostic Criteria

Distinguishing between ST-elevation myocardial infarction and occlusion myocardial infarction (OMI) is crucial, as OMI may not always show the typical ST-segment elevation associated with ST-elevation myocardial infarction. While ST-elevation myocardial infarction is characterized by significant ST-segment elevation in specific leads, OMI can manifest through more subtle ECG changes that are often overlooked. Recent studies reveal that 25-30% of NSTEMI patients have unrecognized acute total occlusion, which can lead to increased mortality rates if not quickly identified and treated.

Clinicians must remain updated on the evolving understanding of OMI equivalents, which encompass various ECG patterns that do not conform to traditional myocardial infarction criteria. For instance, subtle ST elevation not meeting specific thresholds was observed in 83% of OMI patients, while 82% exhibited reciprocal ST depression or T-wave inversion. These findings highlight the importance of thorough ECG analysis to ensure accurate diagnosis and timely intervention.

The diagnostic criteria for OMI have been refined, underscoring the necessity of considering clinical context alongside ECG findings. High-risk indicators, such as persistent ischemic symptoms and hemodynamic instability, should prompt immediate evaluation for reperfusion therapy. Case studies indicate that 55% of OMI patients were identified a median of 1.5 hours earlier using advanced ECG findings compared to conventional criteria, emphasizing the potential for improved outcomes through prompt intervention.

As the medical community increasingly acknowledges the OMI paradigm, emergency departments are urged to adopt new care standards that prioritize accurate ECG interpretation. This shift not only enhances diagnostic precision but also aligns with current guidelines advocating for immediate angiography in high-risk individuals, regardless of whether they meet traditional heart attack criteria. The MaxYield™ platform from Neural Cloud Solutions employs advanced noise filtering and automated labeling to significantly improve the efficiency of ECG analysis, addressing challenges like physiological variability and signal artifacts. Its continuous learning model ensures that diagnostic capabilities evolve with each use, further enhancing accuracy over time. Dr. Pendell Myers has emphasized the rationale for this paradigm shift, noting that many NSTEMI patients were later found to have complete coronary occlusion, necessitating a change in approach.

Traditional STEMI Criteria: Understanding Millimetric Thresholds

Traditional STEMI criteria state that ST-segment elevation must reach at least 1 mm in two adjacent electrodes on a 12-lead ECG. For men under 40, this threshold increases to 2.5 mm in positions V2 or V3, while women require a minimum of 1.5 mm. Understanding these millimetric thresholds is crucial for accurate diagnosis and prompt treatment of acute coronary occlusions. However, recent findings suggest that these criteria may not cover all cases, especially among diverse populations.

Studies reveal significant ethnic variability in the prevalence of STE-ECGs, with some groups showing rates as high as 27.5%. This highlights the need for clinicians to be aware of the limitations of current diagnostic criteria. Relying solely on traditional thresholds could result in both false-positive and false-negative diagnoses, particularly in non-Western populations. As guidelines evolve, it is essential to consider these factors to enhance diagnostic accuracy and improve health outcomes.

Shark Fin Pattern: A Critical Indicator in STEMI Diagnosis

The shark fin pattern is a rare yet critical ECG finding that indicates severe myocardial injury. This distinctive waveform, resembling a shark fin, results from the fusion of the QRS complex, ST segment, and T waves. Recognizing this pattern is vital, as it signifies a substantial burden of myocardial ischemia and demands immediate intervention. Clinicians must remain vigilant, given its association with high in-hospital mortality rates and the necessity for aggressive management strategies.

Studies show that individuals exhibiting the shark fin pattern face an increased risk of ventricular fibrillation and sudden cardiac death. This underscores the importance of prompt recognition and treatment. With the integration of MaxYield™, healthcare professionals can enhance their ability to identify this critical pattern. The technology effectively filters noise and isolates ECG waves, even in challenging recordings.

For instance, a case series highlighted that one adult individual with this pattern underwent percutaneous coronary intervention, while another developed malignant arrhythmias, leading to sudden cardiac death. Moza Guyanto emphasizes that when this pattern is identified, prompt and aggressive management is essential to enhance survival outcomes. Such outcomes highlight the need for healthcare professionals to prioritize the identification of the shark fin pattern in their clinical practice.

Timely intervention, supported by advanced technologies like MaxYield™, which evolves with each use to maximize diagnostic yield, can significantly impact patient survival and management. By utilizing MaxYield™, clinicians can improve their ECG analysis capabilities, ultimately leading to better patient outcomes.

Conclusion

Understanding the essential ECG STEMI locations is crucial for cardiologists aiming to optimize patient outcomes in acute care settings. The article highlights the importance of accurately identifying specific ECG patterns associated with various types of myocardial infarction, including:

By leveraging advanced technologies like Neural Cloud Solutions' MaxYield™ platform, healthcare professionals can enhance their diagnostic capabilities, ensuring timely and effective interventions.

Key insights from the article emphasize the need for clinicians to be proficient in recognizing the distinct ECG characteristics of each STEMI type, as well as the potential pitfalls in diagnosis, such as:

The integration of AI-driven tools not only aids in accurate ECG interpretation but also streamlines workflows, reducing the risk of misdiagnosis and improving overall patient care.

As the landscape of emergency medicine evolves, the emphasis on precise ECG analysis remains paramount. By embracing innovative technologies and continuous education in ECG interpretation, healthcare professionals can significantly impact survival rates and improve treatment outcomes for patients experiencing myocardial infarction. Prioritizing these advancements is essential for the future of cardiac care, ensuring that every minute counts in the critical moments of diagnosis and intervention.
