Introduction
Understanding the heart's electrical activity is essential for effective ECG interpretation, with the cardiac axis acting as a key indicator of heart health. This article explores advanced techniques for mastering cardiac axis interpretation, equipping healthcare professionals with the necessary tools to enhance diagnostic accuracy and optimize treatment planning. Given the variety of methods available and the increasing complexity of ECG data, clinicians must be vigilant in accurately identifying deviations that may indicate serious underlying conditions.

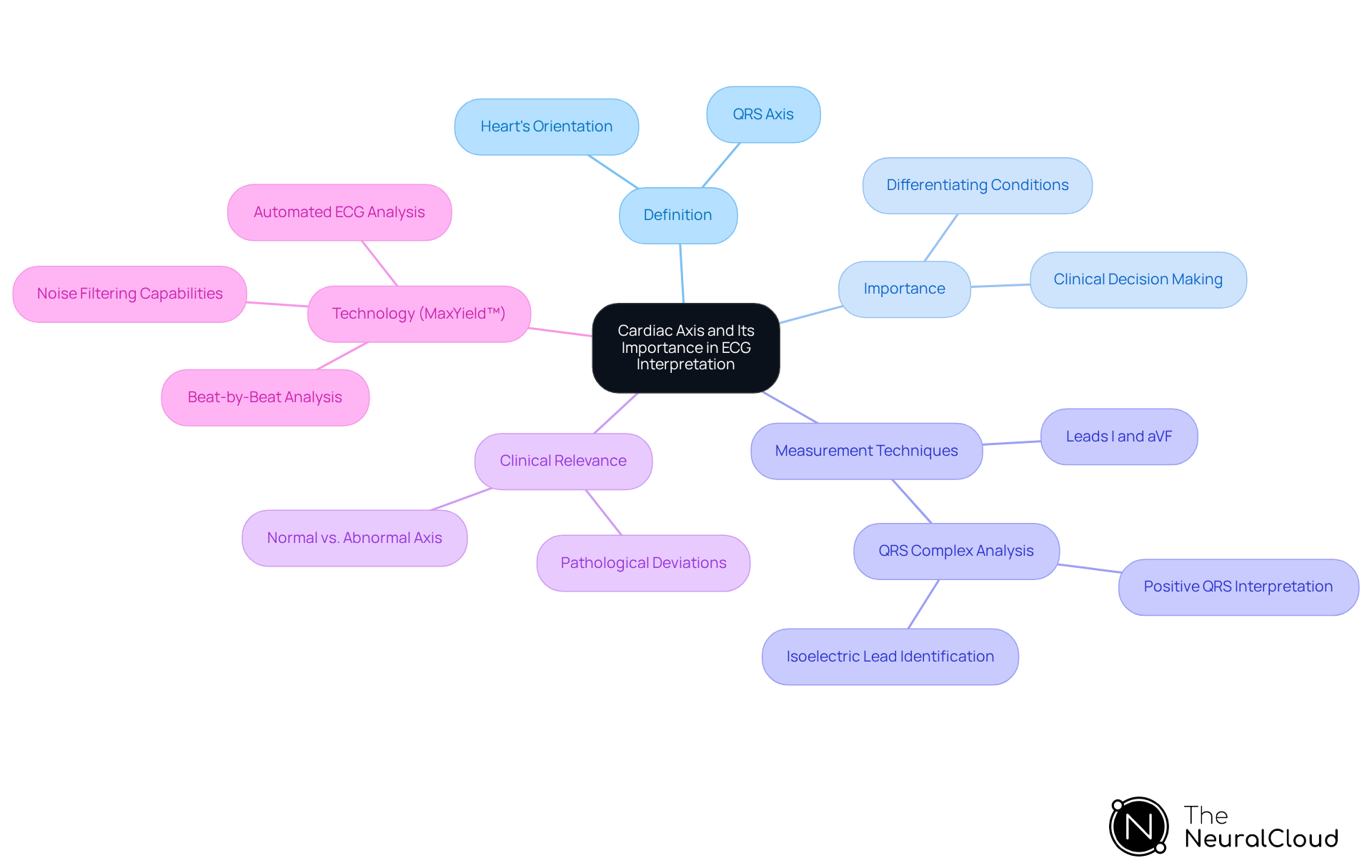

Define Cardiac Axis and Its Importance in ECG Interpretation
The heart's orientation reflects the average direction of electrical activity during depolarization, typically measured in degrees. This measurement is essential for diagnosis, allowing clinicians to differentiate between normal and abnormal heart conditions. A standard cardiac axis is generally observed within the range of -30° to +90°. Deviations from this range may indicate various underlying pathologies, including left or right ventricular hypertrophy, conduction blocks, and other heart abnormalities. For instance, significant orientation deviation may suggest serious conditions like ventricular tachycardia, while a normal orientation is crucial for distinguishing physiological left deviation from pathological left deviation.
Understanding the cardiac axis is vital for accurate assessments in cardiology. The measurement is usually assessed using leads I and aVF, where the positivity or negativity of the QRS complex in these leads helps determine the direction. Recent studies underscore the importance of precise measurement techniques, reinforcing the clinical relevance of this parameter in evaluating patient heart health.
The technology enhances this process by automating analysis, significantly boosting the efficiency of determination. With advanced algorithms, this system can isolate and label heartbeats, even in recordings with high levels of noise and artifacts. It provides beat-by-beat analysis, delivering insights from 200,000 heartbeats in under 5 minutes, ensuring healthcare professionals can depend on accurate results. Thus, mastering interpretation, supported by resources like MaxYield™, is an essential skill for healthcare practitioners, enhancing their ability to make informed clinical decisions based on reliable ECG information.

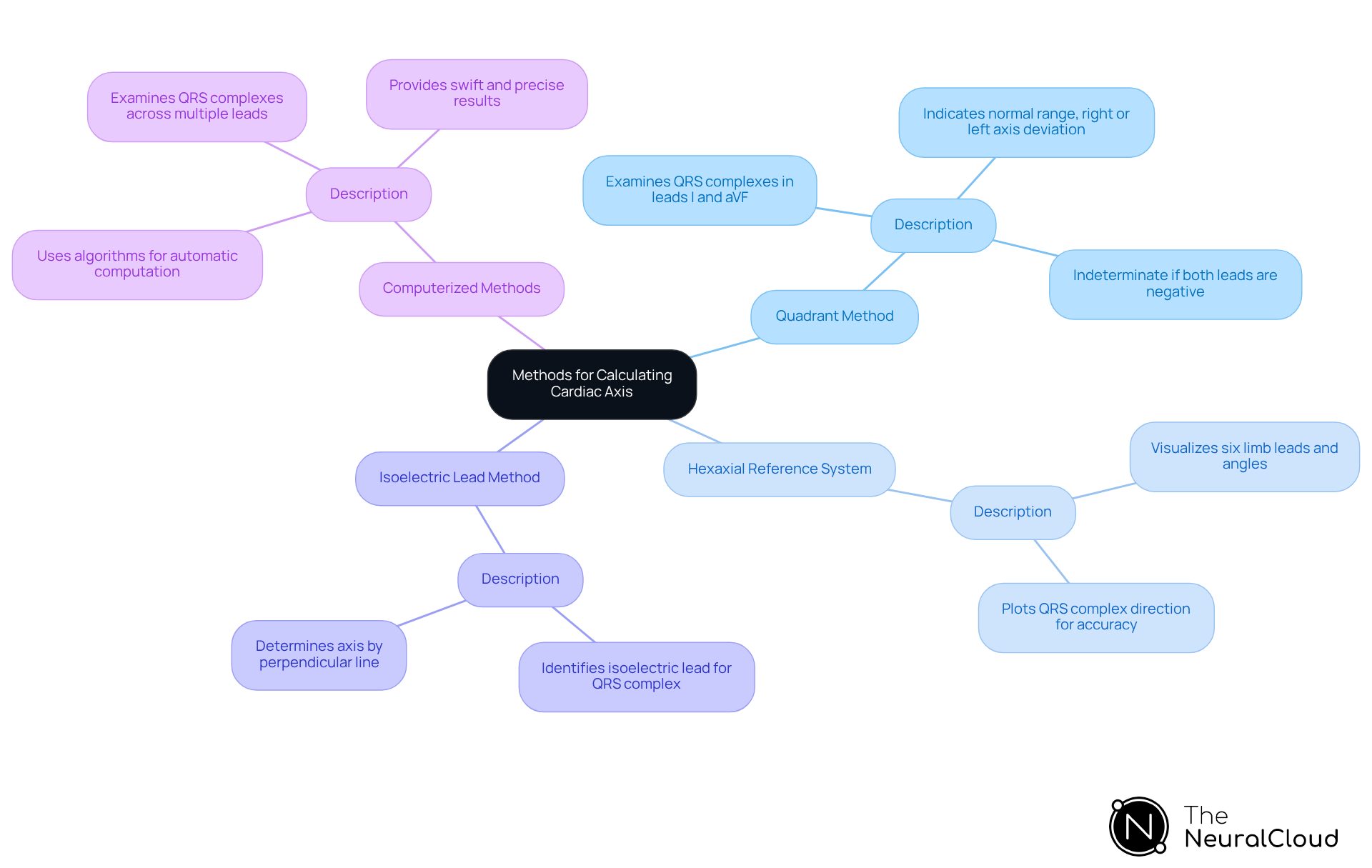

Establish Methods for Calculating Cardiac Axis
Several methods exist for calculating the cardiac axis, each with distinct features and benefits:
- Quadrant Method: This straightforward approach examines the QRS complex in leads I and aVF. If both are positive, the axis is within the normal range. If lead I is negative and lead aVF is positive, the direction indicates right axis deviation. Conversely, if lead I is positive and lead aVF is negative, it suggests left axis deviation. If both leads are negative, the line remains indeterminate.
- Diagram Method: This method employs a diagram to visualize the six limb leads and their corresponding angles in relation to the cardiac axis. By plotting the direction of the QRS complex, one can ascertain the orientation of the axis with greater accuracy.
- Isoelectric Lead Method: This technique involves identifying the lead where the QRS complex is isoelectric, which is crucial for determining the axis, characterized by equal positive and negative deflections. The line is then perpendicular to this lead.
- Algorithmic Method: This method utilizes algorithms to automatically compute heart orientation by examining data across multiple leads, providing swift and precise results.

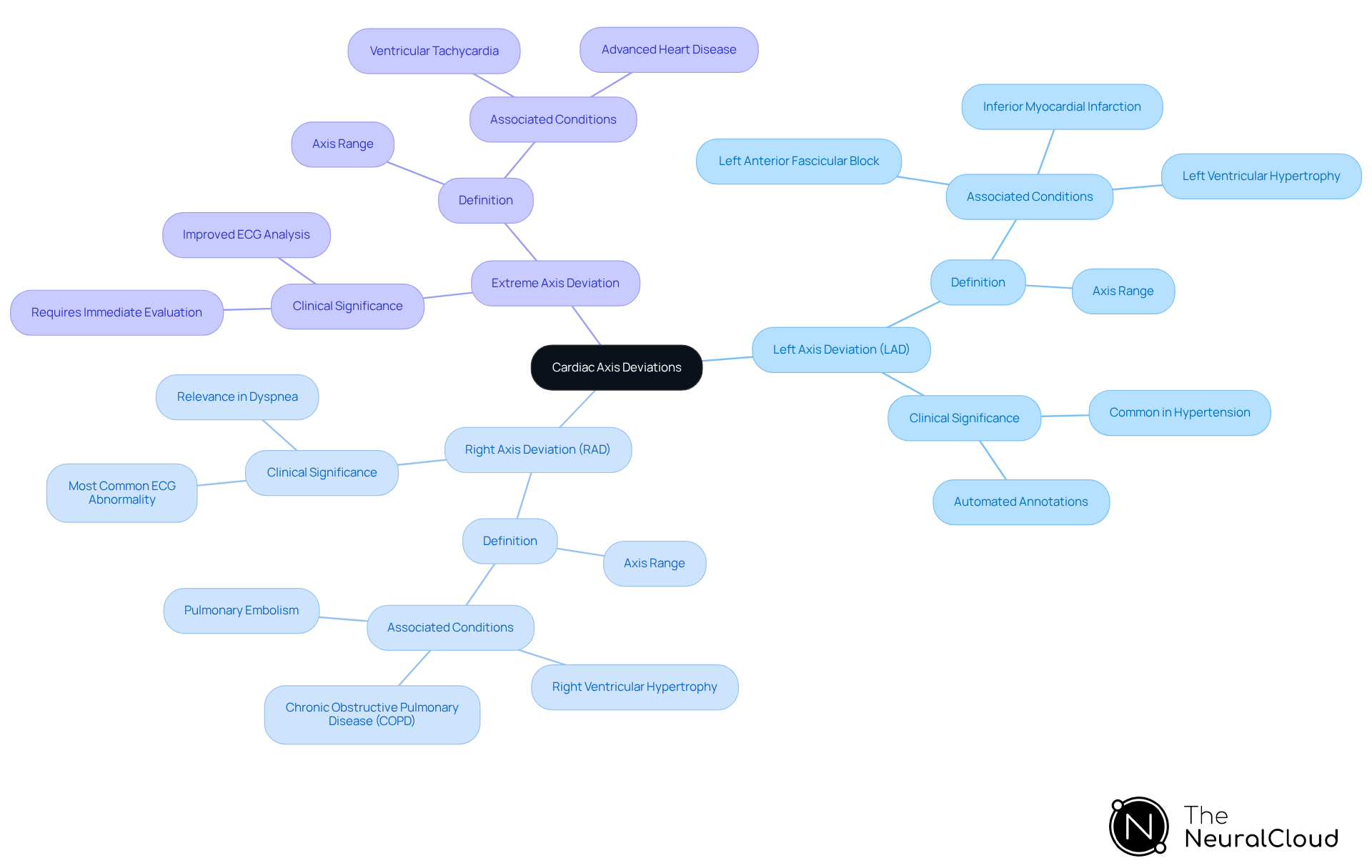

Identify Common Cardiac Axis Deviations and Their Clinical Significance
Common cardiac axis deviations include:
- Left Axis Deviation: Defined as an axis between -30° and -90°, LAD may indicate conditions such as left ventricular hypertrophy, left anterior fascicular block, or inferior myocardial infarction. It is often observed in patients with hypertension or aortic stenosis, highlighting its clinical significance in assessing cardiac health. Specific causes of LAD include left anterior fascicular block, left bundle branch block, and inferior myocardial infarction. The integration of advanced technology streamlines the analysis of these deviations, allowing for automated labeling that enhances efficiency and reduces operational costs through AI-powered algorithms that ensure clean signal processing.
- Right Axis Deviation: An axis greater than +90°, RAD can be associated with right ventricular hypertrophy, chronic obstructive pulmonary disease (COPD), or pulmonary embolism. Recent studies indicate that RAD is the most common ECG abnormality, found in approximately 23.3% of patients, particularly those with dyspnea, underscoring its relevance in diagnosing respiratory and cardiac conditions. Employing this solution helps tackle the challenges presented by physiological variability and signal artifacts, ensuring more precise evaluations through advanced algorithms that improve data interpretation.
- Extreme Axis Deviation: An axis between -90° and +180° often indicates severe underlying pathology, such as ventricular tachycardia or advanced heart disease. This deviation requires immediate attention due to the potential for life-threatening conditions. The advanced algorithms of this system assist clinicians in rapidly recognizing these crucial deviations, improving the overall efficiency of ECG analysis.
Clinical Significance:
- LAD: Frequently seen in patients with hypertension or aortic stenosis, it serves as a critical marker for assessing cardiovascular risk. The technology facilitates quicker recognition of these risks.
- RAD: Commonly observed in patients with lung disease or right heart strain, its presence can indicate significant respiratory compromise, especially in those presenting with dyspnea. The system allows healthcare providers to focus on critical decision-making.
- Extreme Deviation: This condition necessitates urgent clinical intervention, as it may signal severe heart distress or arrhythmias. The platform enhances the speed and precision of identifying such urgent cases, ultimately improving patient outcomes.
Leverage Advanced Technology for Enhanced Cardiac Axis Analysis
Advanced technologies, particularly AI systems, are significantly improving the analysis of the cardiac axis. These platforms, such as Neural Cloud Solutions' advanced system, leverage sophisticated AI algorithms to analyze ECG data swiftly and accurately. This allows for enhanced diagnostic capabilities. The system excels in isolating ECG waves from noisy recordings, salvaging previously obscured sections, and processing over 200,000 heartbeats in under five minutes. This showcases its efficiency in handling large volumes of data while delivering information that includes onsets and offsets.
These innovative technologies seamlessly integrate with existing systems, facilitating rapid adjustments and improving decision-making processes for healthcare professionals. The system rapidly labels critical ECG features in CSV format for easy ingestion into current workflows. This enhances the overall diagnostic yield and supports confident clinical decisions.
AI systems such as this one are designed to evolve over time, learning from new data inputs to enhance diagnostic accuracy and operational efficiency. This adaptability is crucial in a rapidly changing healthcare landscape, where new insights can significantly impact patient care, especially as the algorithm improves with each use.
Advanced visualization techniques empower clinicians to gain deeper insights into the cardiac axis, along with its deviations, thereby supporting more informed clinical decisions. This integration, as enabled by this system, has the potential to transform clinical practice.
Benefits:
- Speed: AI technology significantly reduces the time clinicians dedicate to analysis.
- Accuracy: AI-enhanced analysis minimizes human error, resulting in more reliable diagnoses.
- Scalability: These solutions are adaptable across various clinical environments, from small practices to large hospitals, ensuring widespread applicability and efficiency.
- Innovation: MaxYield™ supports the discovery of new digital biomarkers, unlocking actionable insights that can enhance patient care.
Conclusion
Mastering the interpretation of cardiac axis through advanced ECG techniques is essential for effective diagnosis and treatment in cardiology. This central concept underscores how understanding the heart's electrical orientation facilitates the identification of various cardiac conditions, thereby enhancing clinical decision-making.
The article highlights the significance of cardiac axis measurement and details methods for calculating it, including:
- Quadrant Method
- Hexaxial Reference System
- Computerized techniques
It emphasizes the clinical implications of common deviations, such as:
- Left Axis Deviation (LAD)
- Right Axis Deviation (RAD)
- Extreme Axis Deviation
These deviations can indicate underlying health issues ranging from hypertension to severe arrhythmias. Furthermore, the integration of advanced technology, particularly AI-driven solutions, provides practitioners with improved accuracy and efficiency in ECG analysis, enabling timely and informed clinical interventions.
In conclusion, utilizing advanced ECG techniques and technologies streamlines cardiac axis interpretation and enhances patient care outcomes. Healthcare professionals are encouraged to adopt these innovative tools and methodologies to remain at the forefront of cardiac health assessment, ultimately leading to improved diagnostic accuracy and better patient management in a rapidly evolving medical landscape.
Frequently Asked Questions
What is cardiac axis in the context of ECG interpretation?
Cardiac axis refers to the average direction of electrical activity during the heart's depolarization, typically measured in degrees.
Why is cardiac axis measurement important?
It is essential for ECG interpretation, allowing clinicians to differentiate between normal and abnormal heart conditions.
What is the standard range for heart orientation?
A standard heart orientation is generally observed within the range of -30° to +90°.
What can deviations from the standard cardiac axis range indicate?
Deviations may indicate various underlying pathologies, including left or right ventricular hypertrophy, conduction blocks, and other heart abnormalities.
What serious condition might significant orientation deviation suggest?
Significant orientation deviation may suggest serious conditions like ventricular tachycardia.
How is cardiac axis typically assessed?
Cardiac axis is usually assessed using leads I and aVF, where the positivity or negativity of the QRS complex in these leads helps determine the direction.
What recent advancements have been made in ECG analysis?
The MaxYield™ platform enhances ECG analysis by automating the process, improving efficiency in heart orientation determination, and providing advanced noise filtering capabilities.
How does the MaxYield™ platform contribute to ECG analysis?
It can isolate and label critical ECG data, even in recordings with high levels of noise and artifacts, and provides beat-by-beat analysis of 200,000 heartbeats in under 5 minutes.
Why is mastering heart orientation interpretation crucial for healthcare practitioners?
It enhances their ability to make informed clinical decisions based on reliable ECG information, which is vital for accurate diagnosis and treatment planning in cardiology.
