Overview
The article highlights the importance of QRS complex duration in ECG analysis and its implications for health tech developers.
Accurate measurement of QRS duration is essential for assessing cardiac health, as deviations can signal serious conditions and impact mortality rates.
This understanding serves as a guide for developers to improve ECG technologies, ultimately leading to better clinical outcomes.
By focusing on these critical aspects, the article aims to inform and educate readers about the vital role of QRS duration in enhancing cardiac health assessments.
Introduction
Understanding the QRS complex is essential for anyone involved in cardiac health technology, as it serves as a critical indicator of the heart's electrical activity. This knowledge is particularly important given the challenges in ECG analysis, where misinterpretation can lead to significant consequences.
By delving into the nuances of QRS complex duration, health tech developers can unlock valuable insights that enhance diagnostic accuracy and patient outcomes. However, with the complexity of ECG signals, developers must adopt strategies to ensure they are measuring this vital parameter correctly.

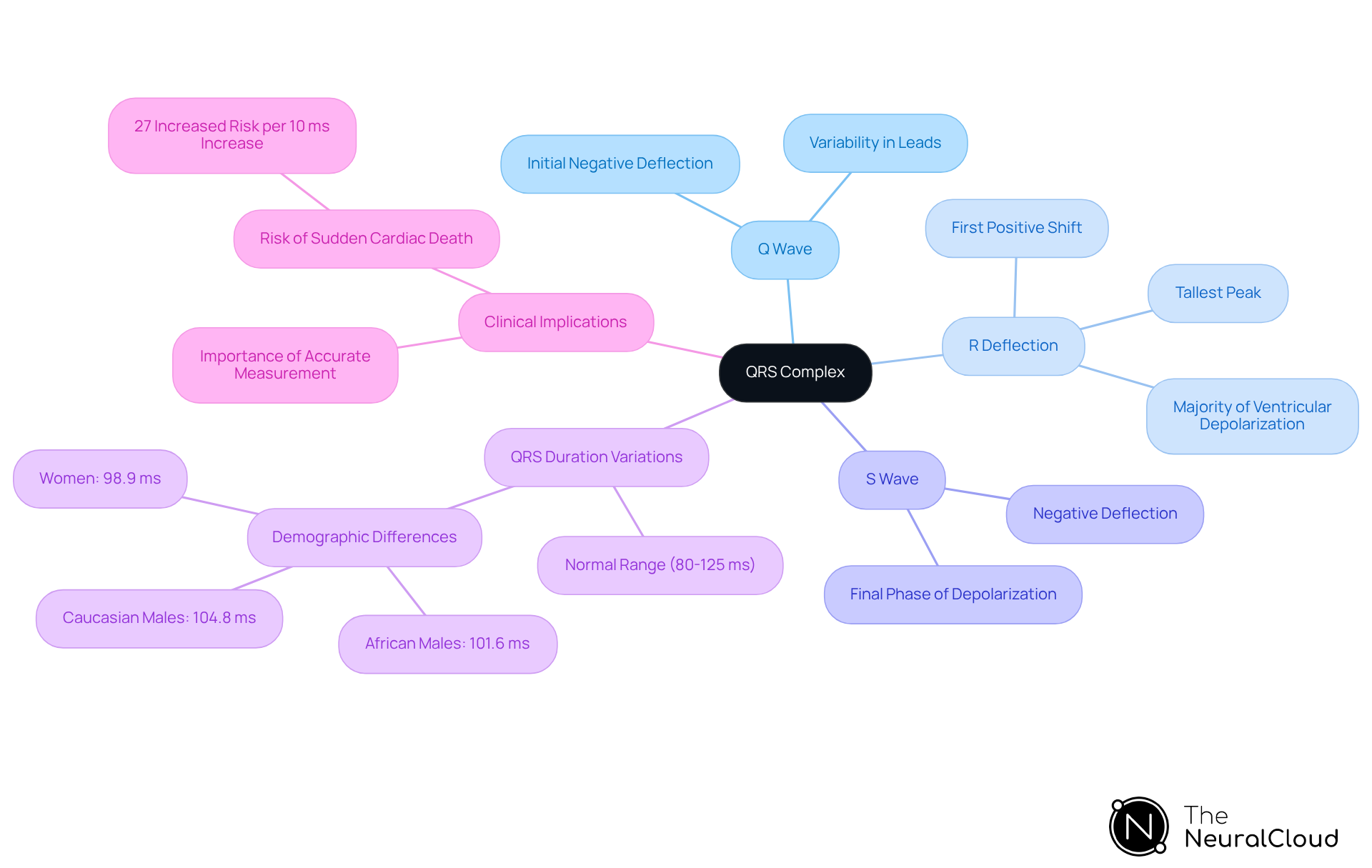

Define the QRS Complex: Structure and Function
The QRS complex is a fundamental component of the electrocardiogram (ECG), representing the electrical activity associated with ventricular depolarization. It consists of three separate oscillations: the Q oscillation, R oscillation, and S oscillation.
- Q Wave: This initial negative deflection from the baseline marks the beginning of ventricular depolarization. It may not be present in all leads, reflecting individual variations in cardiac anatomy.
- R Deflection: Following the Q deflection, the R deflection is the first positive shift and signifies the majority of ventricular depolarization. Typically, it is the tallest peak in the QRS complex, indicating robust electrical activity.
- S Wave: This wave is a negative deflection that follows the R wave, signifying the final phase of ventricular depolarization.
The QRS complex duration is typically between 80 to 125 milliseconds in adults, with significant variations noted based on physiological factors such as heart rate and demographic characteristics. For example, research has indicated that QRS lengths vary among populations, with African males averaging 101.6 ms and Caucasian males at 104.8 ms at a resting heart rate of 1 second. Notably, women typically exhibit shorter QRS durations than men, averaging 98.9 ms compared to 103.5 ms.
Understanding the structure and function of the QRS complex is crucial for developers focused on enhancing ECG analysis technologies. Neural Cloud Solutions' MaxYield™ platform addresses challenges in ECG analysis by employing advanced noise filtering and wave recognition techniques. This includes beat-by-beat analysis that processes 200,000 heartbeats in less than 5 minutes. Such capabilities enable accurate interpretation of the QRS complex, even in recordings with significant noise and artifacts.
Accurate measurement of the QRS complex duration directly influences assessments of cardiac health, allowing healthcare professionals to make informed decisions based on reliable data. Each 10-ms extension in QRS complex duration has been linked to a 27% greater risk for sudden cardiac death (SCD), underscoring the importance of precise QRS complex duration measurement in clinical environments. As the field of cardiac health continues to evolve, the significance of the QRS complex in ECG interpretation remains paramount.
Explore Clinical Significance of QRS Duration

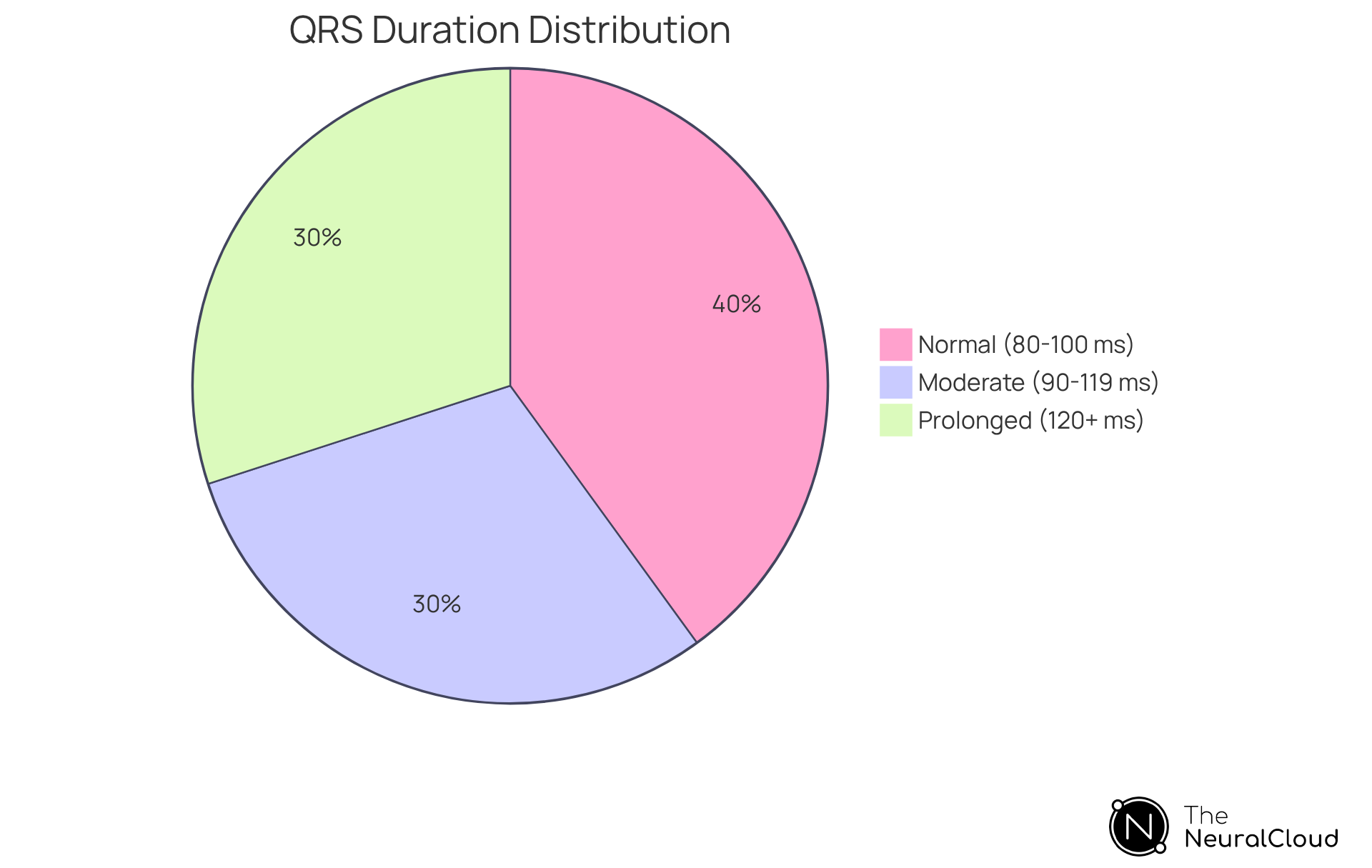

The qrs complex duration is a pivotal parameter in ECG analysis, reflecting the time required for ventricular depolarization. A normal qrs complex duration typically spans from 80 to 100 milliseconds; however, deviations from this range can have profound clinical implications.
Prolonged QRS complex duration: A QRS complex duration exceeding 120 milliseconds is frequently associated with various cardiac conditions, such as bundle branch blocks and ventricular hypertrophy. This prolongation indicates delayed conduction through the ventricles, which can elevate the risk of arrhythmias and other cardiovascular events. Research indicates that patients with a QRS complex duration of 120 ms or more face significantly higher mortality risks, with studies showing a mortality rate of 43.7% in this group compared to those with shorter QRS complex durations.
Clinical Outcomes: Higher mortality rates have been associated with extended QRS complex duration, especially in individuals with heart failure. For instance, each 10-millisecond increase in QRS length correlates with an 18% rise in the risk of cardiovascular death. Moreover, patients with a qrs complex duration between 90-119 ms also display increased mortality and hospitalization risks, highlighting the significance of tracking this parameter.
Diagnostic Importance: For health tech developers, understanding the clinical relevance of QRS length is crucial for creating algorithms that effectively evaluate cardiac health. Technologies like Neural Cloud Solutions' MaxYield™, which leverage advanced noise filtering and wave recognition, can transform lengthy and noisy ECG recordings into clear waveforms. This capability significantly enhances diagnostic accuracy and efficiency, ultimately leading to better management of cardiovascular diseases. Testimonials from users highlight how MaxYield™ has salvaged previously obscured sections of recordings, demonstrating its effectiveness in real-world applications.

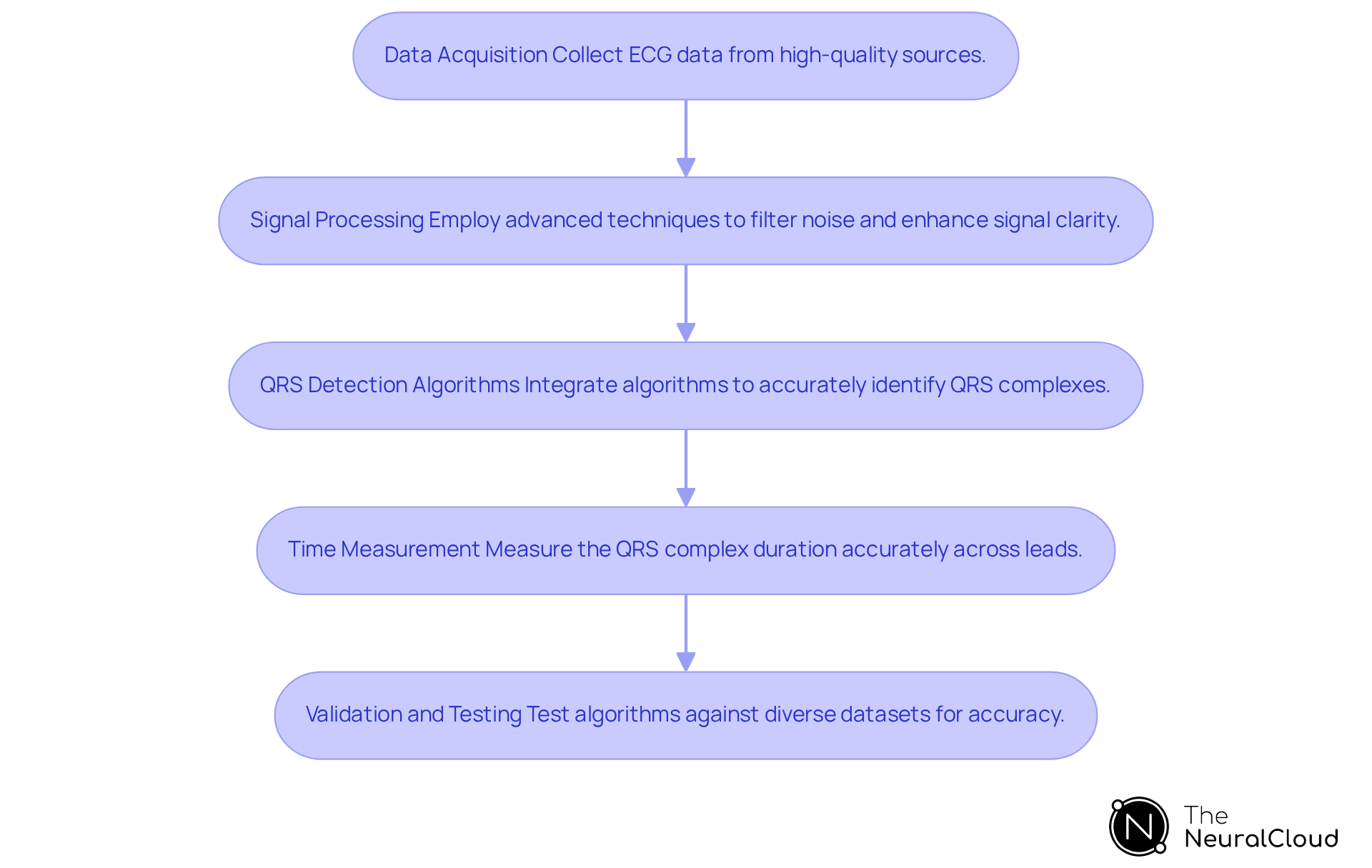

Implementing QRS Duration Measurement in Health Tech Solutions
To effectively implement QRS duration measurement in health tech solutions, developers should consider the following steps:
-
Data Acquisition: Collect ECG data from high-quality sources, such as clinical-grade ECG machines or validated wearable devices. Precise data is essential for dependable measurement of QRS complex duration, as research shows that noise and artifacts can greatly alter ECG signals, affecting diagnostic results. Implementing signal quality assessment (SQA) is crucial to avoid incorrect decisions in ECG signal analysis and feature extraction.
-
Signal Processing: Employ advanced signal processing techniques, including Neural Cloud Solutions' MaxYield™ platform, which features gold standard noise filtering and automation capabilities. This technology helps filter out noise and artifacts that can obscure the ECG signal, enhancing the clarity of the QRS complex. Techniques such as digital filtering and sparse signal decomposition can address common issues like baseline wander and power line interference, which are prevalent in ECG recordings.
-
QRS Detection Algorithms: Integrate algorithms capable of accurately identifying the QRS complex within the ECG signal. For instance, the Pan-Tompkins algorithm and machine learning approaches have demonstrated high sensitivity and positive predictivity, achieving detection rates exceeding 96%. These algorithms can effectively classify QRS complexes, facilitating accurate analysis in diverse clinical scenarios. It is important to note that the Pan-Tompkins algorithm has been reported to achieve a sensitivity of at least 96% for measuring QRS complex duration.
-
Time Measurement: After identifying the QRS complex duration, assess its length by measuring the time interval from the onset of the Q wave to the conclusion of the S wave. Consistency across different leads is essential to maintain reliability, as variations in lead alignment can affect measurement accuracy. The average absolute error for measurements of QRS complex duration is approximately 12 ms, underscoring the reliability of the algorithms being discussed.
-
Validation and Testing: Rigorously test the measurement algorithms against a diverse dataset to validate their accuracy and reliability. This step is vital to guarantee that the technology meets clinical standards, with studies indicating that algorithms can reach an average absolute error of about 10 ms for QRS complex duration measurements, aligning closely with expert evaluations. Additionally, it is important to acknowledge the potential limitations of the algorithms, such as the need for further validation across different MECG systems.
By following these steps, health tech developers can create solutions that provide accurate QRS duration measurements, ultimately enhancing the quality of cardiac care. Furthermore, proper electrode placement and patient preparation are critical factors for obtaining high-quality ECG readings, which should not be overlooked. Real-world applications of the MaxYield™ platform demonstrate its effectiveness in improving ECG analysis through automation and enhanced signal clarity.
Conclusion
Understanding the duration of the QRS complex is crucial for health tech developers focused on enhancing cardiac care. This article explores the intricate structure and function of the QRS complex, underscoring its vital role in reflecting the heart's electrical activity. By comprehending the nuances of QRS duration, developers can inform their technological innovations, ultimately contributing to improved patient outcomes in cardiovascular health.
Key insights include:
- The normal range of QRS complex duration
- The clinical implications of deviations
- The necessity of accurate measurement
Prolonged QRS durations are linked to serious cardiac conditions and heightened mortality risks, highlighting the importance of precise monitoring and analysis. The integration of advanced technologies, such as Neural Cloud Solutions' MaxYield™, illustrates how effective algorithms and noise filtering enhance the reliability of ECG interpretations, paving the way for superior diagnostic practices.
As cardiovascular health remains a pressing concern, the role of QRS complex duration in ECG analysis emerges as a pivotal area for innovation. Developers are urged to utilize advanced techniques and algorithms to ensure accurate assessments, leading to timely interventions and improved patient care. By prioritizing the measurement of QRS duration, the health tech industry can significantly influence cardiac health management and patient safety.
Frequently Asked Questions
What is the QRS complex in an electrocardiogram (ECG)?
The QRS complex is a fundamental component of the ECG that represents the electrical activity associated with ventricular depolarization. It consists of three oscillations: the Q wave, R wave, and S wave.
What does the Q wave signify in the QRS complex?
The Q wave is the initial negative deflection from the baseline, marking the beginning of ventricular depolarization. It may not be present in all ECG leads due to individual variations in cardiac anatomy.
What is the significance of the R wave in the QRS complex?
The R wave is the first positive shift following the Q wave and signifies the majority of ventricular depolarization. It is typically the tallest peak in the QRS complex, indicating robust electrical activity.
What does the S wave represent in the QRS complex?
The S wave is a negative deflection that follows the R wave, signifying the final phase of ventricular depolarization.
What is the typical duration of the QRS complex in adults?
The QRS complex duration typically ranges from 80 to 125 milliseconds in adults, with variations based on physiological factors such as heart rate and demographic characteristics.
How do QRS complex durations differ among populations?
Research has shown that QRS lengths vary among populations, for instance, African males average 101.6 ms while Caucasian males average 104.8 ms at a resting heart rate of 1 second. Women generally have shorter QRS durations, averaging 98.9 ms compared to men's 103.5 ms.
Why is understanding the QRS complex important for ECG analysis technologies?
Understanding the structure and function of the QRS complex is essential for developers focused on enhancing ECG analysis technologies, as it enables accurate interpretation and assessment of cardiac health.
How does Neural Cloud Solutions' MaxYield™ platform improve ECG analysis?
The MaxYield™ platform addresses ECG analysis challenges by employing advanced noise filtering and wave recognition techniques, including beat-by-beat analysis that processes 200,000 heartbeats in less than 5 minutes.
What is the clinical significance of measuring QRS complex duration?
Accurate measurement of QRS complex duration is crucial for assessing cardiac health, as each 10-ms extension in duration is linked to a 27% greater risk for sudden cardiac death (SCD), highlighting the importance of precise measurement in clinical settings.
What role does the QRS complex play in ECG interpretation?
The QRS complex is paramount in ECG interpretation as it provides critical information about ventricular depolarization and overall cardiac health, influencing healthcare professionals' decisions.
