Introduction
Understanding the intricacies of EKG interpretation is not merely a skill; it is a vital component of effective cardiac care. As technology advances, developers are uniquely positioned to enhance the analysis of EKG data, which can lead to improved patient outcomes. However, the challenge persists: how can one master the art of reading EKGs amidst the complexities of cardiac rhythms and patterns? This guide presents a structured approach, equipping readers with essential knowledge and practical tools to navigate EKG analysis with confidence.
Understand the Basics of EKG and Heart Function

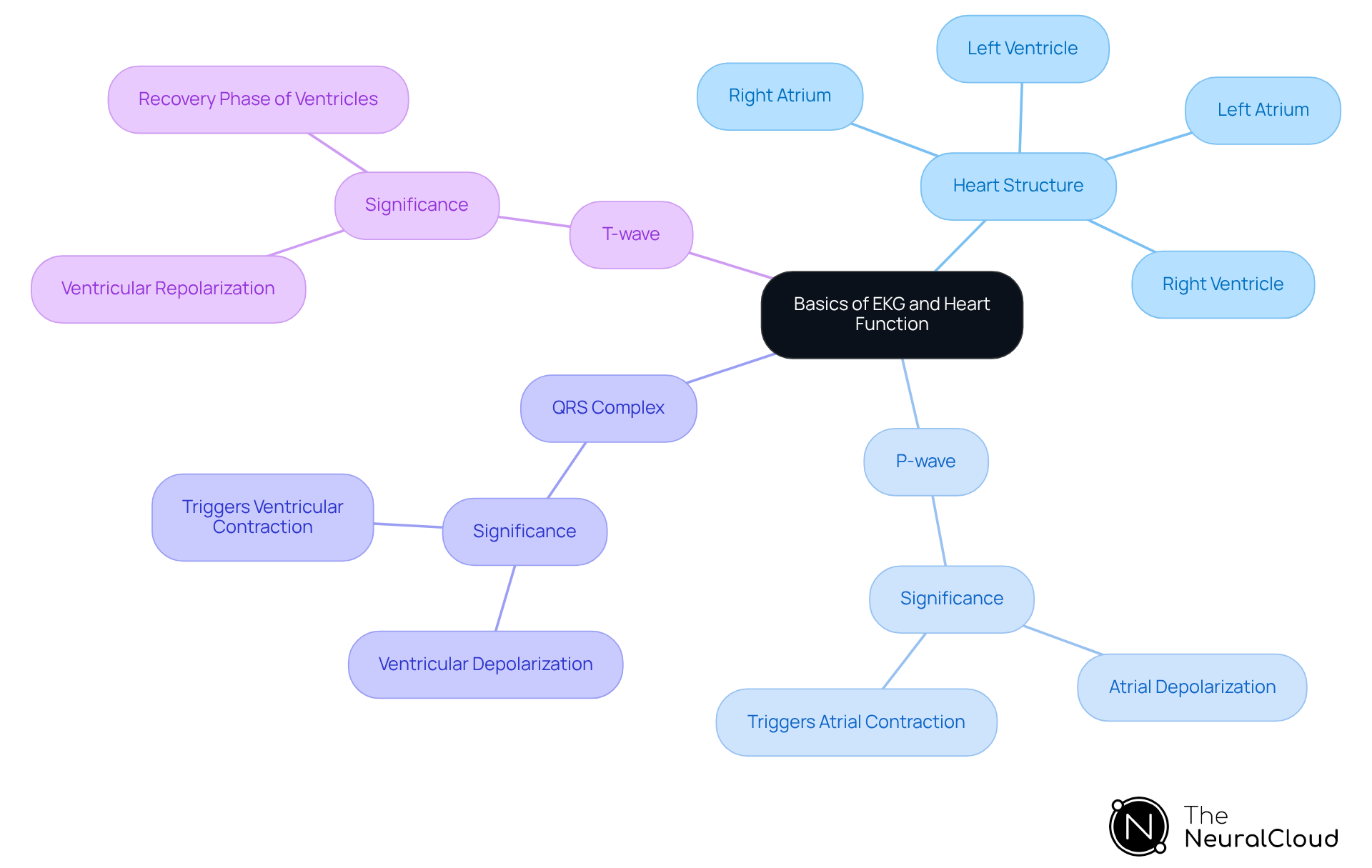

To effectively understand EKG, grasping the fundamental components of heart function is essential. The heart consists of four chambers: the right and left atria and the right and left ventricles. Understanding EKG is crucial, as the electrical activity of the heart generates the EKG waveform, which is essential for interpreting cardiac health. Familiarizing oneself with key terms is important:
- P-wave: Represents atrial depolarization, indicating the electrical impulse that triggers the contraction of the atria.
- QRS complex: Signifies ventricular depolarization, reflecting the electrical activity leading to the contraction of the ventricles.
- T-wave: Denotes ventricular repolarization, marking the recovery phase of the ventricles after contraction.
Understanding EKG is vital for identifying their relationship with heart function and the entire circulatory cycle. This foundational knowledge is particularly important for professionals aiming to enhance patient care through innovative technology such as Neural Cloud Solutions' platform.
MaxYield™ automates ECG analysis, providing real-time insights and effectively filtering noise to isolate critical waveforms, even in recordings with significant artifacts. It can analyze 200,000 heartbeats in less than 5 minutes, significantly improving diagnostic efficiency. Insights from cardiologists highlight the importance of knowing EKG patterns accurately for diagnosing various cardiac conditions. For instance, Dr. Jane Smith, a prominent cardiologist, notes, "The waveforms are not merely waveforms; they are signs of the heart's electrical health and can disclose vital information about a patient's condition."
Real-world examples illustrate how technology can enhance EKG interpretation. Developers can leverage MaxYield™'s features and adaptive algorithms to improve diagnostic accuracy and efficiency, directly addressing challenges such as noise and signal artifacts. Understanding these components and their significance empowers developers to create solutions that can significantly improve patient outcomes.
Follow the 10-Step Process for EKG Rhythm Interpretation

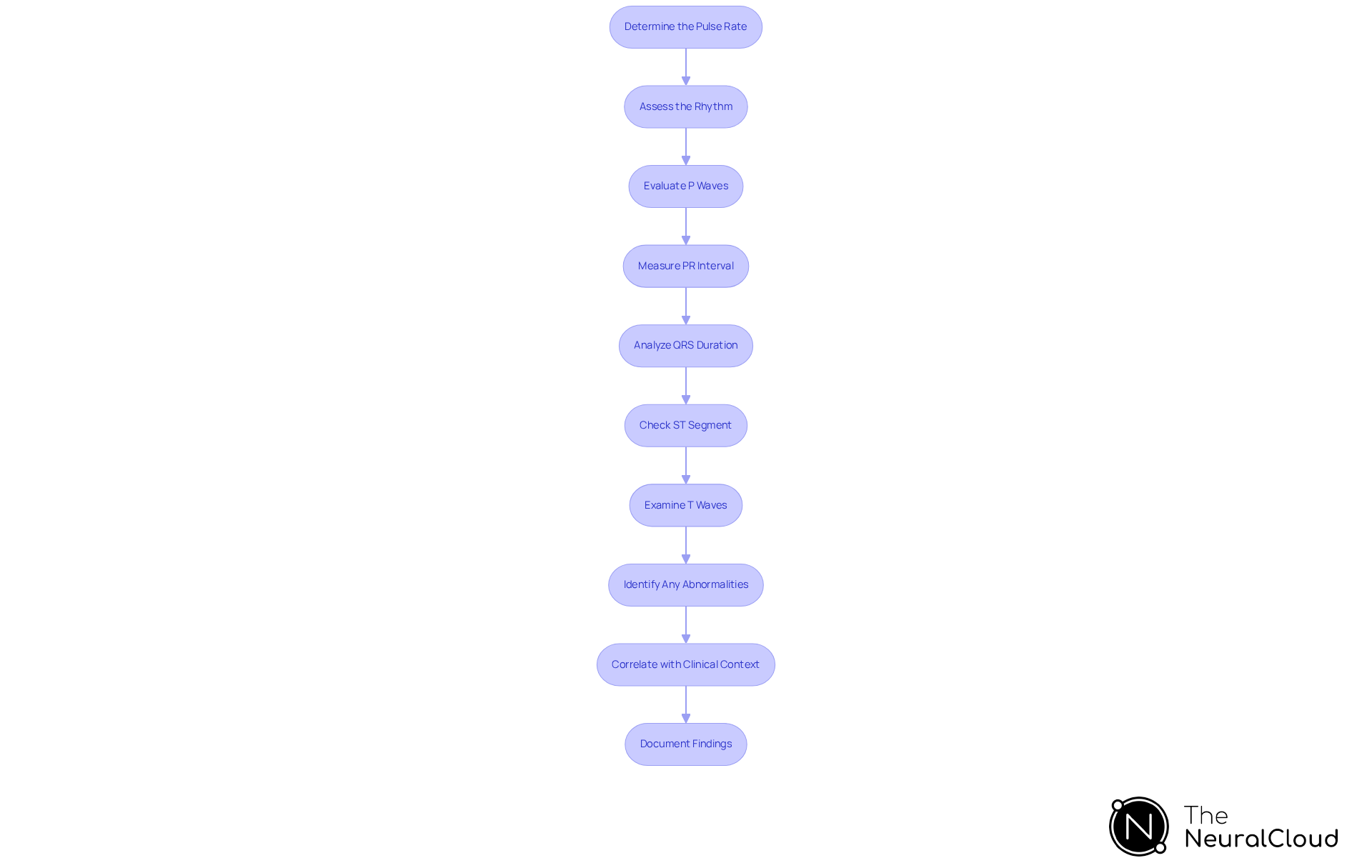

To interpret an EKG rhythm accurately, follow these ten steps:
- Determine the Pulse Rate: Count the number of beats in a 6-second strip and multiply by 10 to calculate the pulse rate in beats per minute (bpm).
- Rhythm Assessment: Evaluate whether the rhythm is regular or irregular by measuring the distance between R-R intervals. A normal sinus rhythm ranges from 60 to 100 bpm.
- P Wave Evaluation: Identify the presence and shape of P waves before each QRS complex. If P waves are present and meet the criteria, the electrical impulse likely began in the sinoatrial (SA) node.
- Measure PR Interval: Calculate the duration of the PR interval, which should be between 0.12 to 0.20 seconds, or 3-5 small boxes on the ECG graph paper.
- QRS Complex Measurement: Measure the width of the QRS complex; a normal duration is less than 0.12 seconds. A prolonged QRS may suggest a bundle branch block or underlying cardiovascular disease.
- ST Segment Check: Look for elevation or depression in the ST segment, as these changes can indicate ischemia or other conditions.
- Examine T Waves: Assess the shape and direction of T waves for abnormalities. Inverted T waves may suggest a lack of oxygen to the cardiovascular system, while peaked T waves could indicate hyperkalemia.
- Identify Any Abnormalities: Look for signs of arrhythmias or other issues, such as ectopic beats, which are changes in rhythm caused by impulses outside the SA node.
- Correlate with Clinical Context: Consider the patient's history and symptoms, as this context is crucial for accurate diagnosis.
- Documentation: Record your interpretation and any recommendations for further action, ensuring that all relevant details are captured for future reference.
By following these steps, creators can build applications that effectively assist users in learning how to read an EKG, ultimately enhancing diagnostic accuracy and improving patient care.
Identify Common EKG Patterns and Abnormalities

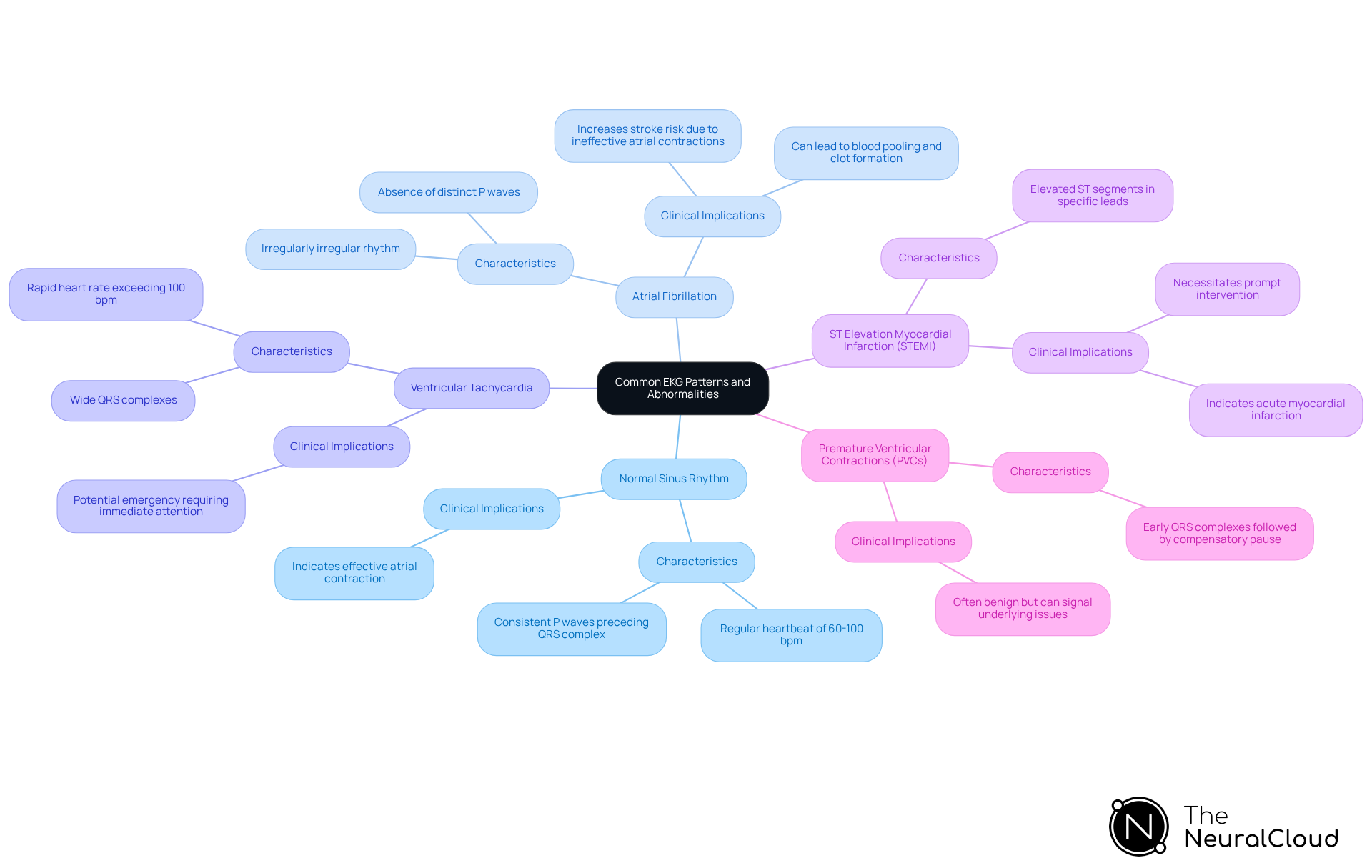

Familiarity with EKG patterns, including common patterns and abnormalities, is essential. Key patterns include:
- Normal Sinus Rhythm: Characterized by a regular heartbeat of 60-100 bpm, with consistent P waves preceding each QRS complex, indicating effective atrial contraction.
- Atrial Fibrillation: Identified by an irregularly irregular rhythm and the absence of distinct P waves, significantly increases the risk of stroke due to ineffective atrial contractions, which can lead to blood pooling and clot formation.
- Ventricular Tachycardia: This condition presents as a rapid heart rate exceeding 100 bpm, accompanied by wide QRS complexes. It is a potential emergency that requires immediate medical attention.
- ST-Elevation Myocardial Infarction: Characterized by elevated ST segments in specific leads, STEMI indicates acute myocardial infarction and necessitates prompt intervention.
- Premature Ventricular Contractions (PVCs): These are early QRS complexes followed by a compensatory pause. While often benign, PVCs can signal underlying cardiac issues that warrant further investigation.
Integrating these patterns into EKG analysis tools can significantly enhance the ability to identify critical cardiac events. For instance, studies indicate that approximately 1.4% of individuals aged 65 and older may have undiagnosed atrial fibrillation, underscoring the importance of effective EKG interpretation in clinical practice. Recognizing and addressing these abnormalities is crucial for timely intervention and improved patient outcomes.
The solution from Neural Cloud Solutions addresses the challenges in ECG analysis by providing tools and data extraction for various ECG recordings, including Holter, Patch, and 1-Lead ECG Monitor. This feature streamlines the analysis process, allowing healthcare professionals to focus on strategies to identify and understand these essential patterns. The advantages of utilizing MaxYield™ include lower operational expenses and increased productivity, ultimately benefiting patient care.
Utilize Tools and Resources for Effective EKG Analysis

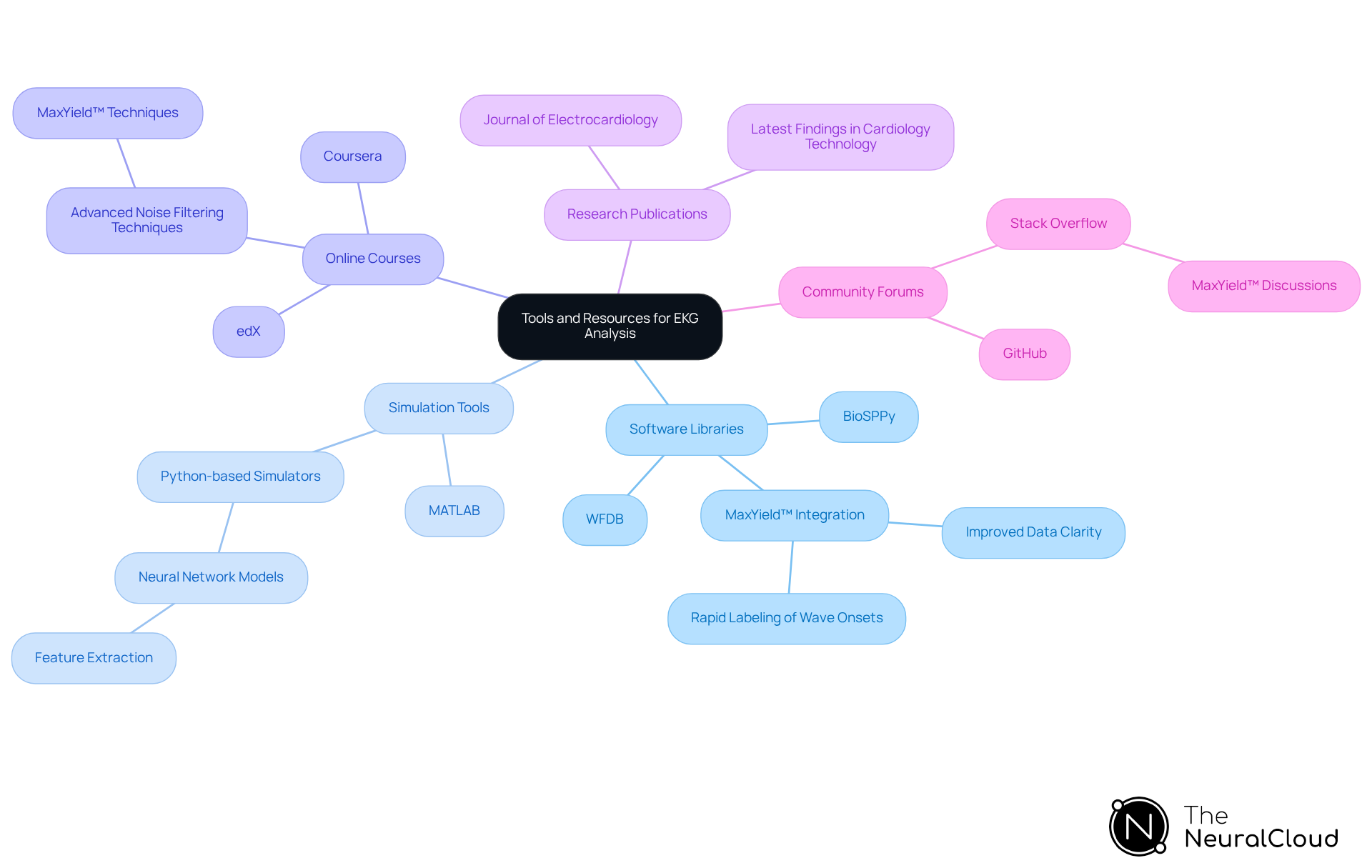

To enhance EKG analysis, developers should consider utilizing the following tools and resources:
- Software Libraries: Libraries such as BioSPPy and WFDB are essential for processing and analyzing EKG signals. They offer a range of functions that streamline the development process. Integrating Neural Cloud Solutions' tools can further enhance these libraries by facilitating rapid labeling of data, thereby improving data clarity and usability.
- Simulation Tools: Simulation tools enable creators to model EKG signals effectively and test algorithms under various conditions. By utilizing data from simulations, practitioners can extract key features from signals, leading to deeper insights and more robust performance in real-world applications.
- Online Courses: Platforms like Coursera and edX provide valuable courses on how to read an EKG and signal processing. These resources assist professionals in building foundational knowledge and remaining up-to-date with industry practices. Learning about techniques employed by experts can further enhance skills.
- Research Publications: Staying informed about research is crucial. Journals like the Journal of Electrocardiology publish cutting-edge research that can inform software development and enhance analytical techniques, including insights on digital biomarkers and signal processing innovations.
- Community Forums: Engaging with communities on platforms like GitHub and Stack Overflow fosters collaboration. This enables programmers to share knowledge, troubleshoot issues, and gain insights from peers. Users of EKG analysis tools can particularly benefit from discussions around shared experiences and solutions related to the technology.
By leveraging these resources, along with the innovative capabilities of software tools, developers can significantly improve their understanding of how to read an EKG and improve the functionality of their EKG analysis applications. Ultimately, this leads to more accurate interpretations.
Conclusion
Mastering the art of reading an EKG transcends mere waveform recognition; it is a crucial skill for anyone engaged in cardiac health and technology development. By understanding the fundamental concepts of cardiac function and the nuances of EKG interpretation, developers can create powerful tools that enhance diagnostic accuracy and improve patient care. This knowledge is essential for utilizing innovative platforms like MaxYield™, which automate ECG analysis and streamline the interpretation process.
The article presents a structured approach to EKG interpretation, emphasizing a ten-step process that guides users through evaluating pulse rate, rhythm, waveforms, and identifying potential abnormalities. Key patterns, including normal sinus rhythm, atrial fibrillation, and STEMI, are underscored, illustrating the importance of recognizing these conditions for timely intervention. Furthermore, the integration of advanced tools and resources, such as software libraries and online courses, empowers developers to deepen their understanding and refine their applications.
Ultimately, the capacity to read an EKG effectively can profoundly influence patient outcomes. By leveraging the insights shared in this guide and utilizing available resources, developers can significantly contribute to advancements in cardiac health technology. This journey not only enhances analytical capabilities but also promotes a proactive approach to improving patient care, highlighting the critical role of accurate EKG interpretation in modern medicine.
Frequently Asked Questions
What are the main components of the heart relevant to EKG readings?
The heart consists of four chambers: the right atrium, left atrium, right ventricle, and left ventricle.
What does the P-wave represent in an EKG?
The P-wave represents atrial depolarization, indicating the electrical impulse that triggers the contraction of the atria.
What does the QRS complex signify in an EKG?
The QRS complex signifies ventricular depolarization, reflecting the electrical activity that leads to the contraction of the ventricles.
What is indicated by the T-wave in an EKG?
The T-wave denotes ventricular repolarization, marking the recovery phase of the ventricles after contraction.
Why is it important to understand how to read an EKG?
Understanding how to read an EKG is crucial for identifying the relationship between EKG waveforms and cardiac function, which is essential for diagnosing various cardiac conditions.
What technology is mentioned that aids in EKG analysis?
The MaxYield™ platform from Neural Cloud Solutions automates ECG analysis, providing beat-by-beat insights and filtering noise to isolate critical waveforms.
How quickly can MaxYield™ analyze heartbeats?
MaxYield™ can analyze 200,000 heartbeats in less than 5 minutes, significantly improving diagnostic efficiency.
What challenges does MaxYield™ address in EKG analysis?
MaxYield™ addresses challenges such as physiological variability and signal artifacts through advanced noise filtering and adaptive algorithms.
What is the significance of the insights provided by cardiologists regarding EKG waveforms?
Insights from cardiologists highlight that the P-wave, QRS complex, and T-wave are indicators of the heart's electrical health and can disclose vital information about a patient's condition.
